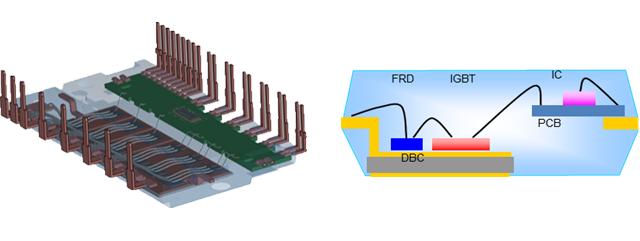

Xiner DIP29 IPM is perfectly compatible with an imported brand Mini series products. It adopts DBC and PCB technology. The products are mature and reliable, and the power level is complete. It is the first choice for servo drives.
DIP29 IPM Features and Benefits:
|
Product number |
Voltage (V) |
Current (A) |
Insulation withstand voltage (KV) |
Optimization Switch （KHz） |
Device |
Recommend power (W) |
Thermal interface |
Bootstrap diode |
Undervoltage protection |
Overcurrent protection |
Temperature Output |
Interlock |
|
VF (Typ) (V) |
Rth (j-c)(Max) (℃/W) |
|
VCE (SAT)(Typ) (V) |
|||||||||||||||
| XNS30S12E6 | 600 | 30 | 2.5 | 20 | IGBT | 3000 | DBC | Yes | Yes | Yes | VOT | Yes | 1.6 | 1.5 | 1.1 |
| XNS40S12E6 | 600 | 40 | 2.5 | 20 | IGBT | 4000 | DBC | Yes | Yes | Yes | VOT | Yes | 1.7 | 1.6 | 1 |
| XNS50S12E6 | 600 | 50 | 2.5 | 20 | IGBT | 5000 | DBC | Yes | Yes | Yes | VOT | Yes | 1.8 | 1.8 | 0.8 |
| XNS10S12FT | 1200 | 10 | 2.5 | 20 | IGBT | 2000 | DBC | Yes | Yes | Yes | NTC | Yes | 2 | 2 | 1.3 |
| XNS15S12FT | 1200 | 15 | 2.5 | 20 | IGBT | 2500 | DBC | Yes | Yes | Yes | NTC | Yes | 2.1 | 2.2 | 1.3 |
| XNS25S12FT | 1200 | 25 | 2.5 | 20 | IGBT | 4000 | DBC | Yes | Yes | Yes | NTC | Yes | 2 | 2 | 0.9 |
| XNC20S12FT | 1200 | 20 | 2.5 | 20 | SiC-MOSFET | 2500 | DBC | Yes | Yes | Yes | NTC | Yes | 80mΩ | 3 | 1.3 |
.png)
Commercial air conditioner
Heat pump
Frequency converter.png)
Servo motor風(fēng)機(jī).png)
Industrial fan
Water pump
