Based on XNG450B13KC5A4 (450A650V)
Xiner Xiner Loading... 2018-12-03

Applications: New Energy Vehicle Motor Controller

Program Highlights:

  • Module + drive seamlessly matches;
  • Keep stray inductance
  • Low thermal resistance;
  • Ultra low loss;
  • High junction temperature Tjmax = 175 ° C;
  • High reliability
  • Complete protection

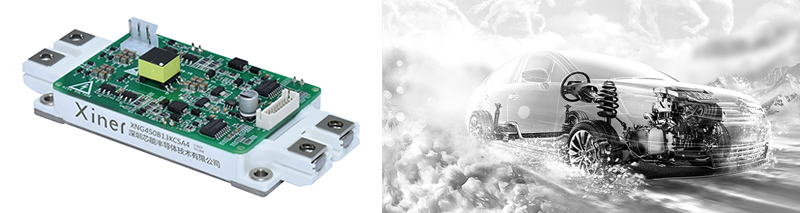

based on XNG450B13KC5A4(450A650V)

Key:

IGBT module: XNG450B13KC5A4 Driver board: XND8A120V

Performance metrics:

Parameters Metrics
Input voltage 200~400Vdc
Carrier frequency ≤10KHZ
Maximum output power 250A
Maximum working junction temperature 150 ° C
Protective function OCP, OVP, OTP, undervoltage/overvoltage protection
Temperature monitoring NTC
